Xenioo and Zapier integration: how to automatically collect data from a survey chatbot

If you have been using online automation or automatic task design in the last years, you surely know Zapier. Today we’re going to see how easy it is to integrate Xenioo with Zapier to create real-time data flow and collection. The scenario is quite typical: we are asking our users some very simple questions and we would like to collect all the answers in an external repository. In our example, the repository will be a Google Sheet.

Building our chatbot

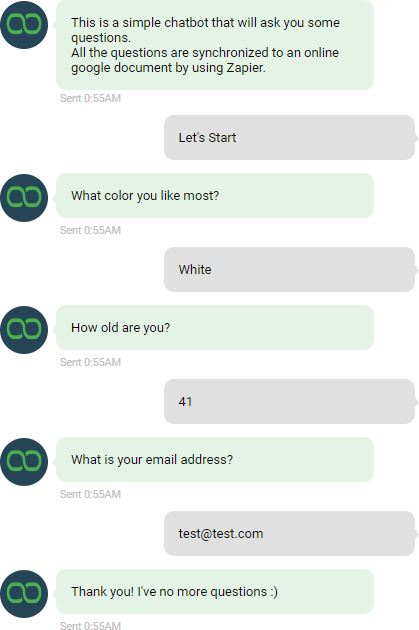

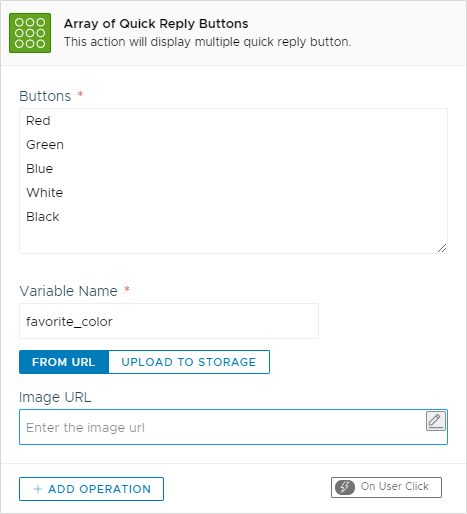

To get as fast as possible to Zapier integration, we are building a simple chatbot asking the user the usual questions. We are using a brand new Xenioo Action to further cut some time from design: the Array Of Quick Reply Buttons. This action will display two or more quick reply buttons and automatically set a variable of your choice with the text of the clicked button. Is very quick and perfect for this kind of chatbot where we want to collect the user answer to multiple options.

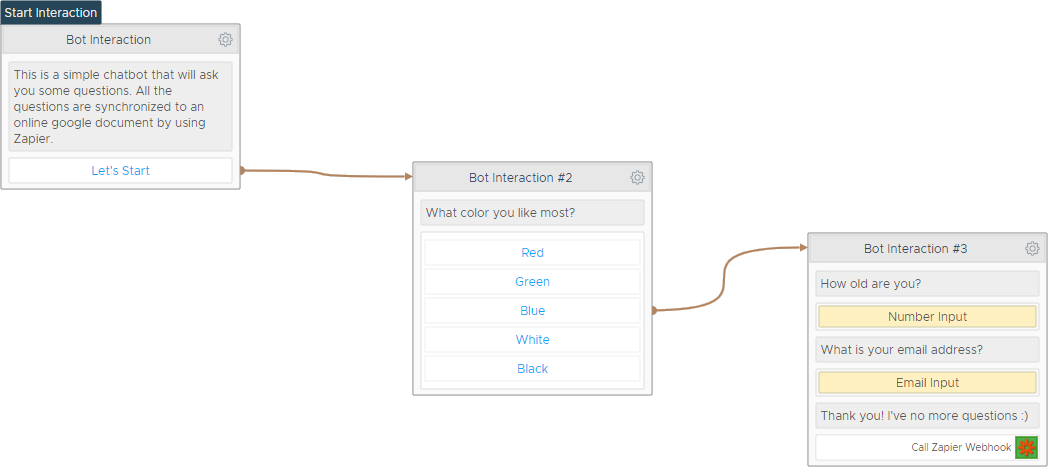

We can laso add an image to each button but let’s skip this step for now. We quickly setup our chat flow connections and our chatbot will look something like the one in the following picture.

That was easy 😉 At the very end of the chatflow, you can see the small ‘Call Zapier Webhook‘ Action : that’s where the magic happens. As for every Xenioo component, you can call integrations as an Action or as an Operation: an Action will execute directly during the chat flow while an Operation will execute as a result of an event. The text display is a typical Action while the GoTo attached to a quick reply button, redirecting the chatflow to another step, is a typical Operation. The Zapier integration is no different: you can choose to place it as a step of the chatflow (that will be of course invisible to your users) or attach it as an Operation to an event of any other Action.

Setting up our Zap

Now that our chatbot is ready, it is time to move to Zapier to setup our automated Zap and our connection to google docs. To do so, we are creating a two step Zap: the first step will receive the data sent by Xenioo while the second will populate our google sheet.

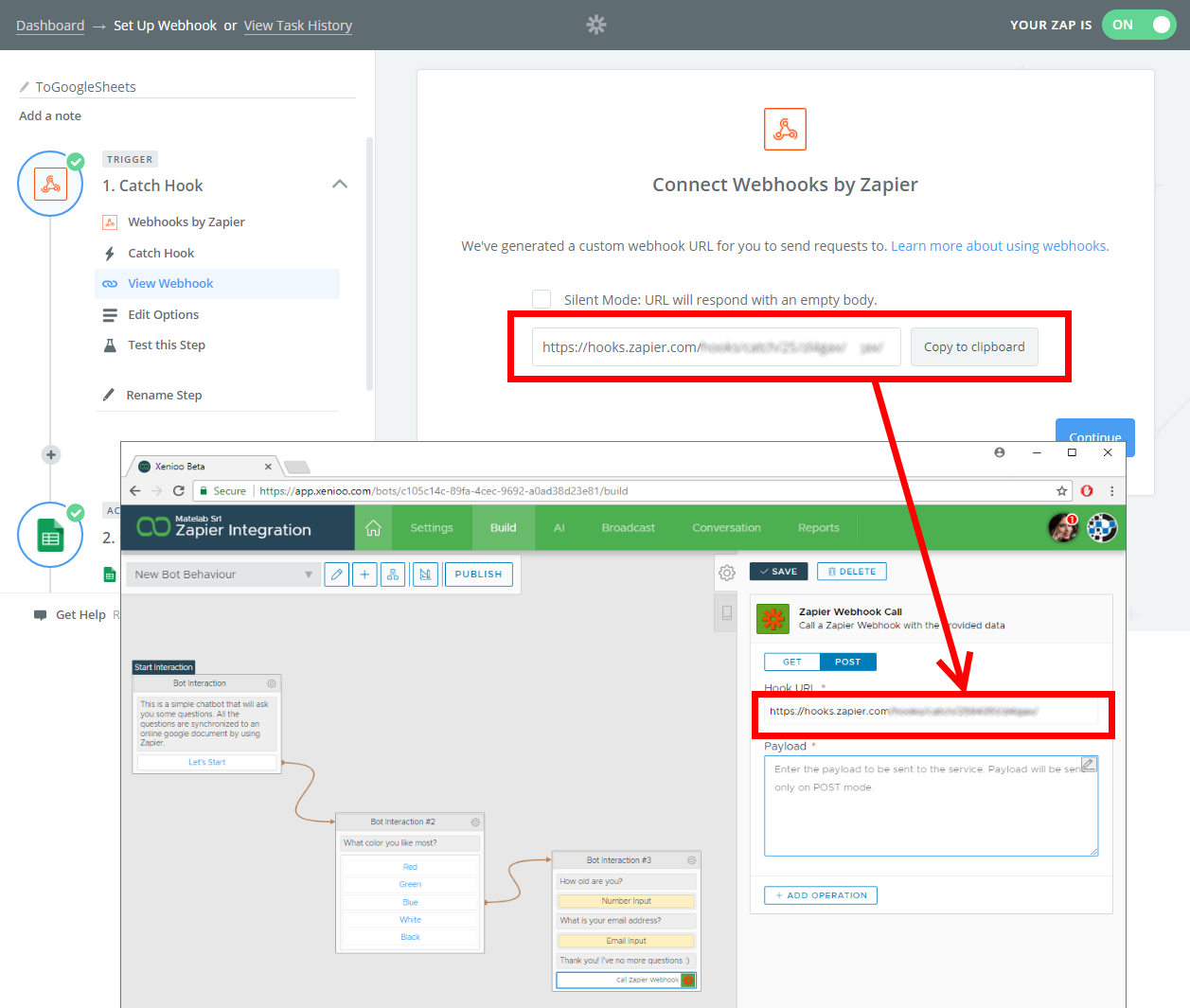

To let Xenioo send data to our Zap, we are creating a Webhook step that will wait for incoming POST data. Xenioo will be pushing data to our Zap and activate it. Zapier will automatically present you with a unique url that represent your Zap Webhook endpoint: copy the url and paste it into the Hook URL parameter in the Xenioo Zapier Integration Action.

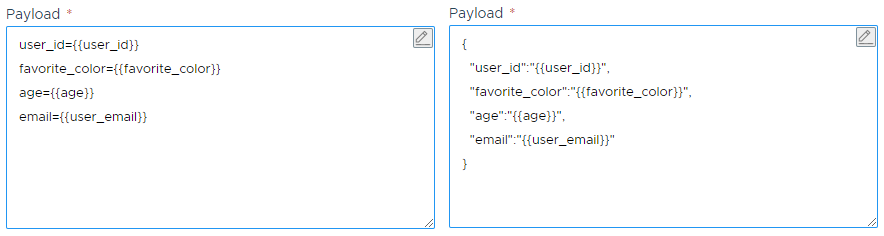

The webhook url is half of the work: the other half is choosing what data we are going to send. To do this, we can fill the Payload field with all the variables we need. You can choose between a flat varibale=value list of fields or go for more complex JSON structures: Xenioo can uderstand both. If you specify a JSON structure, Xenioo will send the payload exactly as you wrote it (parsing of course all variable placeholders) otherwise it will create a JSON structure for you. In the following example, both configurations lead to the same result.

Once you are happy with your variables configuration, is time to let Zapier know that it can start listening to the webhook. As you enter the “Test this Step” section of Zapier, you can run you chatbot preview and have Xenioo automatically call the hook for the first time. This action has two goals: the first, is to test that the hook works (eh) and the second, is to let Zapier know the name of the fields we will be pushig trough it and that we are going to use in our next step.

Attaching your Google Sheet

Once the webhook step is up and running all we need to do is attach a Google sheet from our Google Docs account. Follow the Zapier authorization procedure to grant your Zap access to your documents. For this example, we are choosing option that creates a new row in an existing sheet. Prepare a new worksheet in your Google Docs account and attach it to the action. If the previous step has been done correctly, Zapier will automatically present the Xenioo variables specified in the payload and choosing what data goes in what column will be just a matter of a couple of clicks. If you are adding new variables or changing the payload structure, remember to go back to step one and test again the hook: the Zap fields will update and you won’t loose any configuration you’ve made to other steps. Once this step is complete, activate your Zap and we can go back to Xenioo and launch a preview of our chatbot.

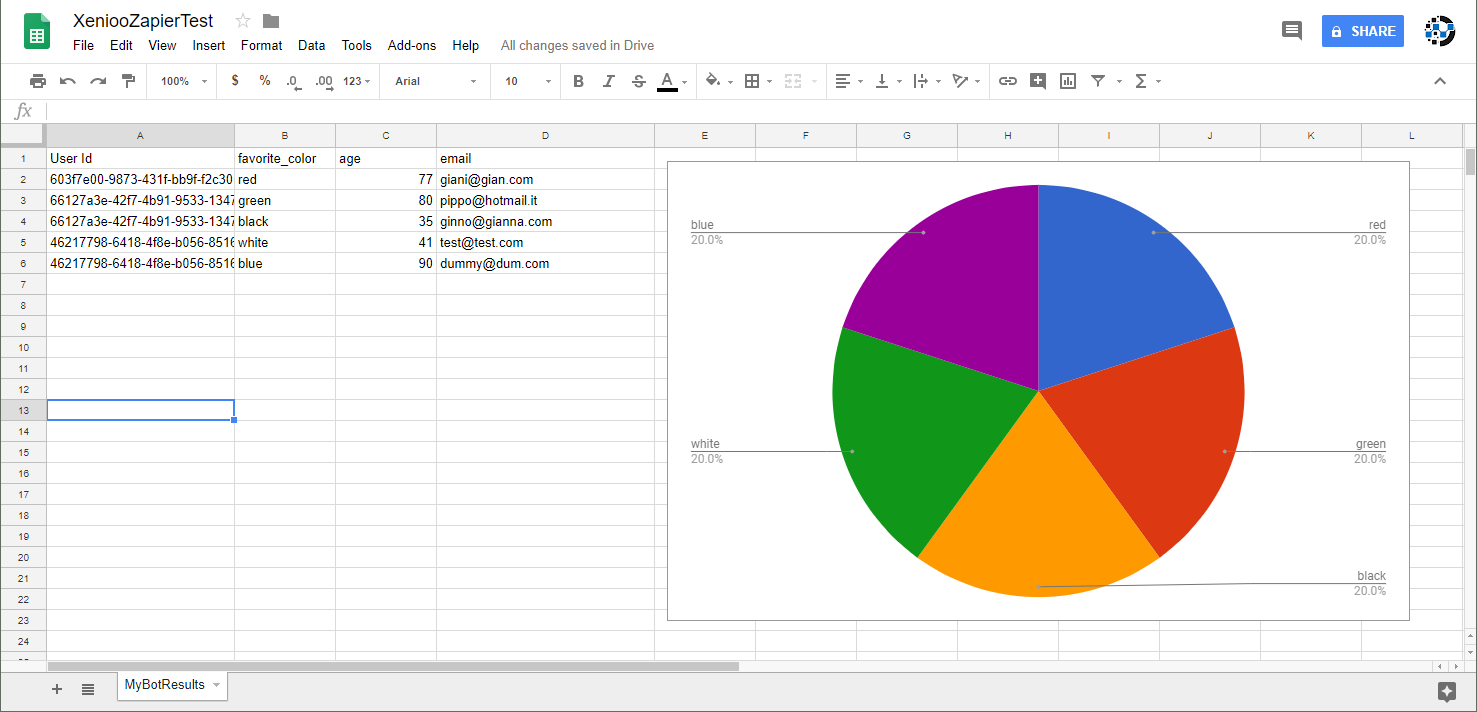

You can keep your google sheet open: as soon as you finish the chat flow, you’ll see a new row added in real time!…And since you’re at it you can put a nice chart to check the statistics of your survey as soon as they are ready!

Awesome! Now again! blindfolded!

The Xenioo integration with Zapier can work wonders with your chatbot data, your leads and generally with everything that needs some level of advanced automation. What we’ve seen today just barely scratched the surface of what you can archive with this Xenioo Action and yet, we didn’t stop here.
A one way integration is surely fine, but what if you could do it both ways? What if a slight change in that Google Sheet could activate a Xenioo Broadcast? Imagine updating your order status sheet and have a broadcast automatically notify your contacts that their order is ready! Sound nice? Just wait for the next post then!

Want to check out the full example in Xenioo? Click here to download the template that you can restore as a brand new bot in you account.
