Now that we have learned how to call external API services and use the results in our chatbot, we can step a little further and alter the API results to create completely new content. In order to do so, in this lesson we are going to use Xenioo’s Cloud Scripting Action, and directly change and create content dynamically.
You can follow our lesson directly from the video below. At the end of the post you will find a Xenioo bot file that simply restores the example bot into your account for playback and testing. Let’s start!
An artist lookup service
For this example, we’re going to build a very simple artist lookup service. To do so, we’ll be using the iTunes public search API that can be found here. The API is very easy to use and has a good amount of parameters.
First we are going to use an Input Action to get the artist’s name from the user and then the API Service Action to retrieve the data and store it in a variable.
This time the service will reply with a standard 500 error when no artist is found: to handle this, we will use a Variable Switch Operation to redirect the chat flow to another interaction whenever the user submits an artist that does not exist. If the call is successful, we will store the results into a Xenioo variable.
Sometimes API calls will return complex results that are difficult to handle with a single variable. The call we are using returns a complex object with multiple information, so a simple variable would not suffice. Furthermore, to make our example more complex, we would like to display the results in a carousel, with multiple cards for multiple collections or albums. The general idea is to let the user say the name of an artist, and display the latest two albums found.

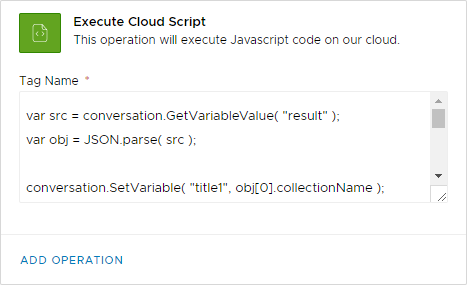

To do so, we need to retrieve the results, as we are doing, and then split them into multiple variables that can be assigned to our cards properties: an easy job for Xenioo’s Cloud Script Action.

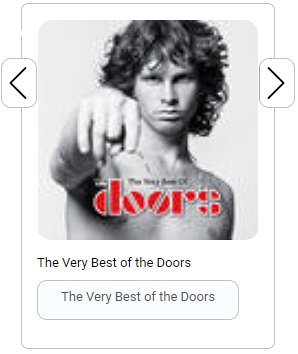

Once we have all the variables we need we can create a Carousel Action and assign them to all the properties we want to fill. The title of the carousel can be the Album title, the subtitle can be the track name and the image can be the Album art.
Putting it all together
Once all our components are in place, we’re ready to give our bot a test run. Submit your favorite artist and see how Xenioo automatically handles everything to deliver our result. Also, take a moment to look at how simple our design is for such a complex result!
In this lesson we’ve learned how to use Xenioo’s Cloud Script Action to manipulate data and API results to create a simple lookup service. As with all our lessons, you can download a Xenioo Bot Backup File that you can import in your account to further experiment and learn.
